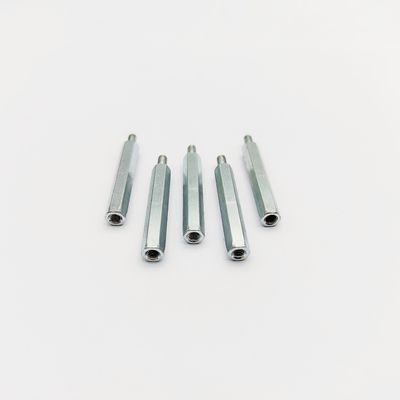

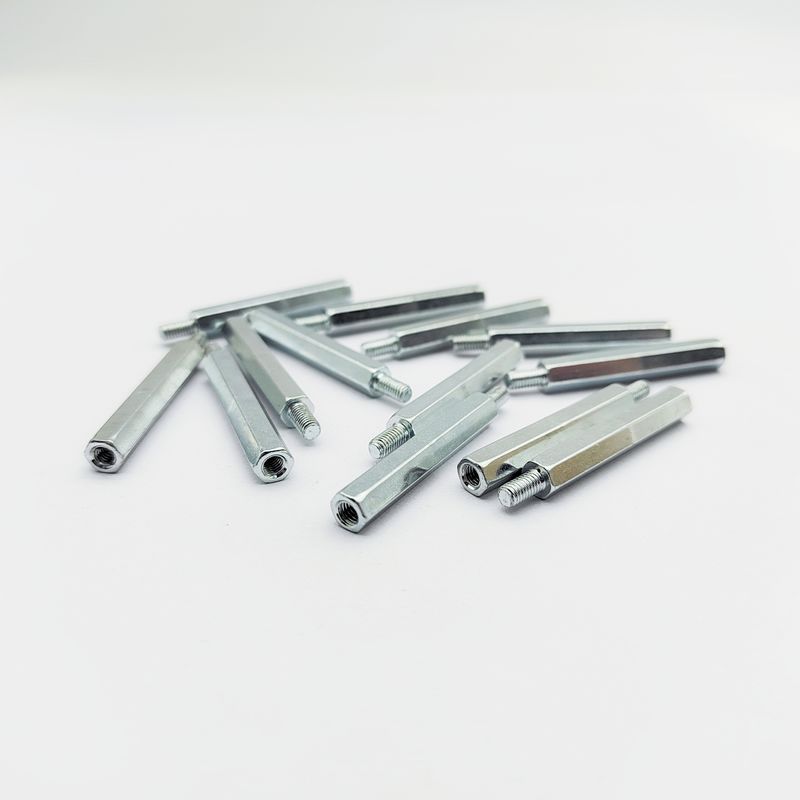

A4-80 Stainless Steel Hex Standoff M3-M8, 31mm Length, Blue-Zinc Plating
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | guanbiao |
| 인증: | ISO9001 |
| 모델 번호: | M3 |
| 문서: | guanbiao hardware PPT(new)P...DF.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 50000 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 비닐 봉지 + 카톤 + 팔레트 |
| 배달 시간: | 15-20 일 |
| 지불 조건: | t/t |
| 공급 능력: | 5000000 |
|
상세 정보 |
|||
| 제품 사용: | 교통 전자 장치 | 실: | 남성 여성 |
|---|---|---|---|
| 리드 타임: | 15 ~ 20 근무일 | Finsh: | 푸른 흰색 아연 도금 |
| 재료: | A4-80 스테인레스 스틸 (316) | 관용: | +/- 0.05mm |
| 힘: | 높은 | 사양: | ISO |
| 수량: | 1000의 팩 | 유형: | 스탠드오프 나사 |
| 샘플: | 무료 샘플 | 설치하기 쉽습니다: | 예 |
| 총 길이: | 31mm | ||
| 강조하다: | A4-80 stainless steel hex standoff,M3-M8 standoff screws with blue-zinc plating,31mm length stainless steel standoff |
||
제품 설명
Heavy Duty Hex Standoff - Male-Female - A4-80 Stainless Steel - Blue-Zinc - for Industrial Use - M3 to M8
Designed for demanding industrial applications, our Heavy-Duty Hex Standoffs provide robust spacing and mounting solutions where strength and reliability are paramount. The H4.75-M3x31+6 size is built to create durable, high-clearance connections in challenging environments. Made from A4-80 (316) Stainless Steel with a protective blue-white zinc plating, they offer superior resistance to corrosion, vibration, and moisture compared to standard A2-70 grade, making them suitable for industrial controls, telecommunications infrastructure, and outdoor applications.
Technical Specifications
| Thread Diameter | M3, M4, M5, M6, M8** (e.g., M3x0.5) |
|---|---|
| Hex Size (AF) | M3: 4.75mm; M4: 6mm; M6: 10mm |
| Total Length (L) | 10mm to 100mm** (Fully Customizable, e.g., 31mm) |
| Male Thread Length (L_m) | 5mm to 30mm** (Fully Customizable, e.g., 6mm) |
| Female Thread Depth (L_f) | (L - L_m)** (Fully Customizable, e.g., 25mm for L=31) |
| Material | A4-80 Stainless Steel (316) |
| Surface Treatment | Blue-White Zinc Plating |
| Tensile Strength | 800 MPa (min) |
| Customization | All dimensions and thread combinations available |
Primary Uses & Applications
- Industrial Automation: Mounting PCBs in PLC cabinets, motor drives, and robotic systems where shock, vibration, and humidity are present.
- Telecommunications Infrastructure: Used in 5G base stations, network switches, and outdoor cabinets requiring mechanical durability and environmental resistance.
- Power Electronics: Spacing and mounting boards in power supplies, inverters, and battery management systems within industrial settings.
- Outdoor & Marine Equipment: Providing corrosion-resistant mounting points in sensor housings, navigation equipment, and control units exposed to the elements.
- Transportation Electronics: Securing control units in automotive, rail, and marine applications (non-safety-critical).
How to Use
- Preparation: Ensure the tapped holes in the base material are clean and free of debris. Using stainless steel screws is recommended for optimal corrosion performance match.
- Installation: Use a correctly sized hex wrench or socket. Screw the male thread into the base material. The A4-80 stainless steel is stronger but can be prone to galling (cold-welding); using a moderate speed and avoiding over-tightening is advised.
- Final Assembly: Place the component over the standoff and secure it with an appropriate stainless steel machine screw. The deep female thread (25mm) allows for a strong connection with various material thicknesses.
- Torque Control: For critical applications, use a torque wrench according to the specifications for A4-80 stainless steel to ensure a secure connection without damaging the threads.
- Custom Solutions: We can manufacture standoffs to your exact specifications to solve unique design challenges involving space constraints or specific environmental exposures.
Our Advantages
- More than 20 years of screw production experience and non-standard screw custom development experience, providing cost-effective solutions and helping solve fastener supply chain challenges.
- Precise production equipment with all imported machinery from Taiwan to produce precision screws and hardware accessories. Free sample testing available for compatibility verification.
- Complete management system with multiple strict quality control checks for every batch of products.
- Dedicated account management for seamless collaboration and system-supporting services.
Support and Services
Our team of knowledgeable professionals provides comprehensive support for all aspects of our hex standoff screws, from selection advice to installation guidance. We offer detailed product specifications, material safety data sheets, and troubleshooting assistance to ensure your project's success.
Packing and Shipping
Our hex standoff screws are carefully packaged in moisture-resistant plastic bags within sturdy cardboard boxes. Larger orders are palletized and shrink-wrapped for secure transit. We use reliable courier services with tracking information provided for all shipments.
Custom solutions available: Our factory accepts customized drawings to meet your specific requirements. Contact us to discuss certifications or other special parameters for your project.
