Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | guanbiao |
| 인증: | ISO, GB, BS, DIN, ANSI,JIS |
| 모델 번호: | 4.9*10.5 |
결제 및 배송 조건:
| 최소 주문 수량: | 50000pcs |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 플라스틱 백 1 소형 박스 +outer 통 +pallets |
| 배달 시간: | 10-15 작업 일수 |
| 지불 조건: | T/T |
| 공급 능력: | 100000 PC / 일 |
|
상세 정보 |
|||
| 소재: | 스테인레스 강 : 302,304,316 | 생산 과정: | 냉간 헤딩, 냉간 단조 |
|---|---|---|---|
| 표면가공도 / 처리: | 끝마무리, 패시베이션 | 크기: | 4.9*10.5 |
| 스레드 유형: | 기계 스레드 | 패키지: | 소형 박스, 작은 컬러 박스가 통을 수출하고, 강한 목제 팔레트를 썼습니다 |
| 싱글: | 3.7g | ||
제품 설명

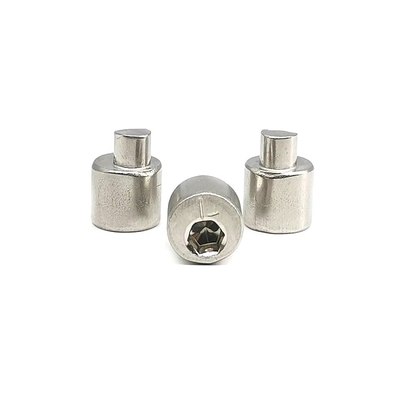

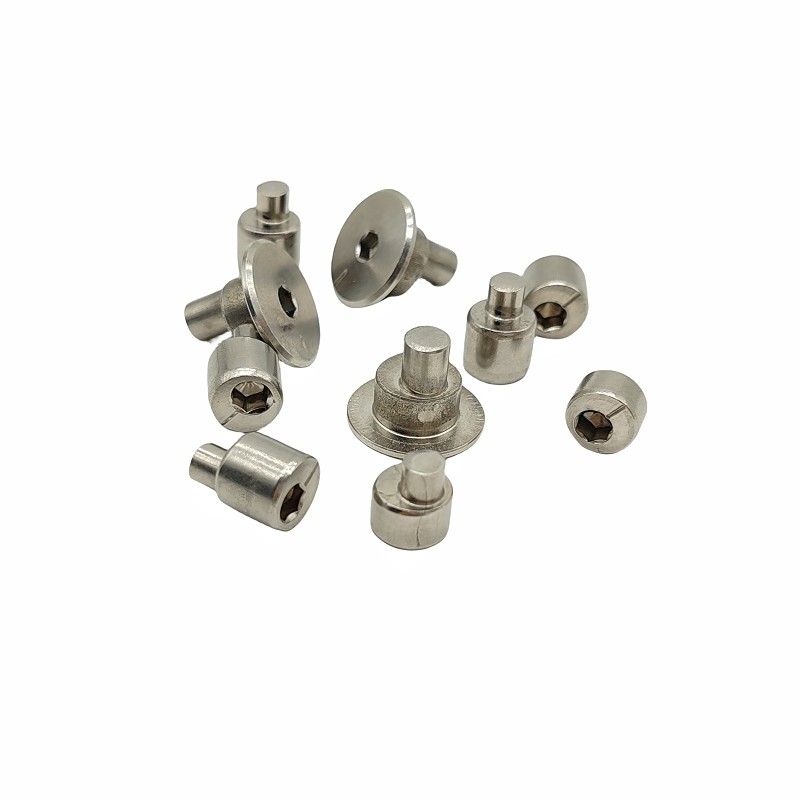

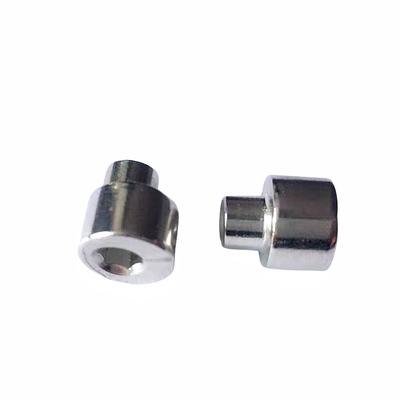

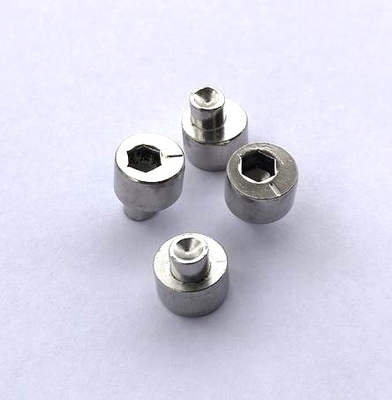

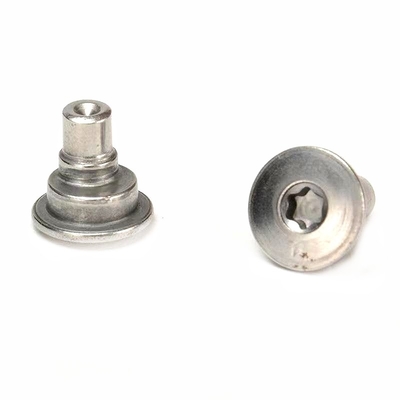

Cold Formed Eccentric Locking Shaft Carbon Steel & Stainless Steel Smart Locks & Window Hardware Custom OEM/ODM
Precision Eccentric Locking Shafts for Smart Locks & Sliding Windows
We manufacture high-performance cold-formed eccentric locking shafts designed for smart locks and thermal break sliding windows, ensuring secure and smooth operation. Made from carbon steel (high strength) or stainless steel (corrosion-resistant), our shafts feature precise eccentricity for reliable locking mechanisms. We support full customization based on your drawings or samples, ensuring perfect compatibility with your hardware systems.
✅ Key Features:
✔ Optimized for Smart Locks & Windows – Ensures smooth engagement and long-term durability.
✔ Cold Forming Technology – Enhances mechanical strength (+25% vs. machined shafts).
✔ Corrosion-Resistant Options – Stainless steel (304/316) for outdoor & humid environments.
✔ Custom Eccentricity & Dimensions – Tailored to fit your lock or window mechanism.
✔ Fast Prototyping – Samples ready in 10-15 days after drawing approval.
Product parameters
| Specification | Material Options | Surface Treatment | Remarks |
|---|---|---|---|
| Production Process | Cold Forming | – | Enhances structural integrity |
| Standard Diameter | 1.0mm – 20mm (±0.05mm) | Custom diameters available | |
| Length Range | 2.0mm – 300mm (±0.1mm) | Extended lengths on request | |
| Material Grades | • Carbon Steel: SC435/10B21/20MnB4 • Stainless Steel: 302/304/316 |
Other alloys (e.g., alloy steel) optional | |
| Hardness (HRC) | Carbon Steel: 28-32 Stainless: 20-25 |
Adjustable per application needs | |
| Surface Finish | – | Carbon Steel: • Zinc plating (8-12μm) • Black oxide • Phosphating • Electro-galvanizing Stainless Steel: • Passivation • Electro-polishing • Sandblasting |
RoHS compliant options available |
| Eccentricity Tolerance | ±0.03mm | – | Tighter tolerances achievable |
| Customization | Accept OEM drawings & samples | – | MOQ: 50,000 pcs Standard lead time: 30 days |
(Applications)
